Grates in housing

enables simple push-pull operation

  • Grates in housing
    Grates in housing

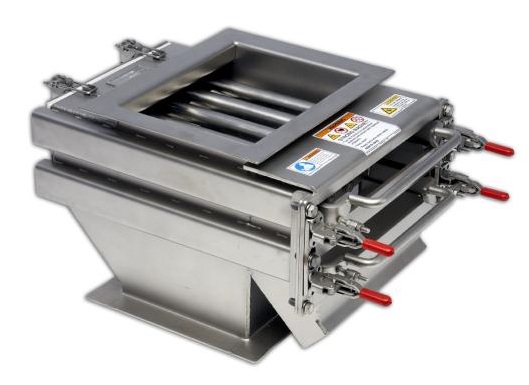

Eriez Magnetics ProGrade Easy to Clean Grates in Housing provide quick removal of accumulated fine iron contamination and offer trouble-free push-pull operation. Cleaning is quick and straightforward. Simply unlatch the clamps on the drawer fronts, pull the magnet bank toward you and the accumulated metal contamination is scraped from the tube and discharged out the front of the housing. The cleaning cycle is reduced to only a few seconds with this push–pull operation.

The grates are available in Xtreme Rare Earth magnet strength and are ideal at removing weakly magnetic fine ferrous contamination, especially in the food and other processing industries. These double bank Grates feature all stainless steel construction and glass bead surface finish. They are suitable for use in temperatures up to 65°C.
