Truck Oven Up to 600°F

  Enquiry / contact me

No. 936 is a 600°F (316°C) truck oven from Grieve has a workspace dimension of 36” W x 36” D x 60” H. 24 KW and it is used for hi-temp processing of parts

Equipment & Services, Explosion Protection & Safety

Truck Oven Up to 600°F
Truck Oven Up to 600°F

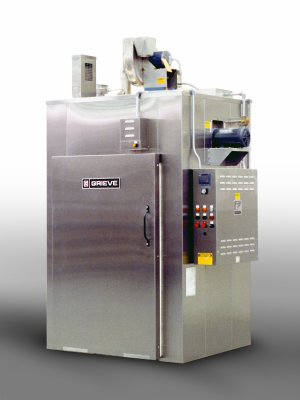

This Grieve truck oven has 5” insulated walls, top-mounted heat chamber and Type 304 2B finish stainless steel interior. Features also include a stainless steel exterior with #4 brushed finish, solenoid operated door lock and safety equipment for handling flammable solvents, including explosion venting door hardware. The oven includes a 325 CFM powered forced exhauster plus motorized dampers on intake and exhaust for accelerated cooling. Controls on No. 936 include a digital programming temperature controller and SCR power controller.

Posted on October 24, 2016 - (1004 views)
THE GRIEVE CORPORATION
500 Hart Road, Round Lake
60073-2835 Illinois - USA
+1-(847) 546-8225
+1-(847) 546-9210
View full company profile
