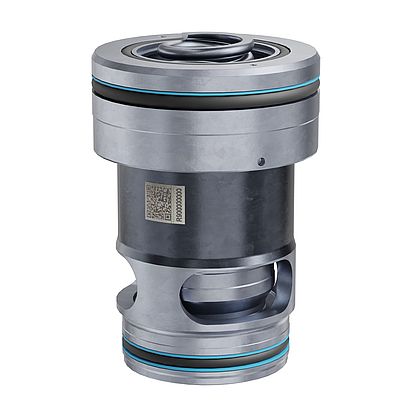

With the new nominal sizes 80, 100, and 125, the Bosch Rexroth LC-8X 2-way cartridge valve is now available for an even wider range of applications. The integrated standard stem seal prevents gap filtration. All valve components are designed for operating pressures up to a maximum of 450 bar. This ensures that tightness and functionality are maintained even after 10 million load cycles at maximum switching power.
Higher efficiency
The flow-optimized design significantly reduce pressure losses in directional functions compared to the predecessor series LC-6X, nominal sizes 80 and 100, and LC-2X, nominal size 125, while also reducing heat and cooling requirements. A friction-optimized piston and the standard integrated stem seal minimize the risk of internal leakage as well as power loss and reduce energy consumption.
Resources are also used efficiently in packaging: The valves are packaged in shock-resistant round cups made from recycled material.
More standardization
Standardizing the valve design simplifies project planning, engineering, installation, and maintenance. This lowers process costs, shortens delivery times, and minimizes downtime. The LC-8X is fully compatible with its predecessor models. Existing covers can be reused, with the exception of covers with stroke limitation. This conserves resources and reduces the effort required for modifications or retrofits.
