Master Bond EP3UF is a low viscosity system that has good flow properties and can be applied in bond lines as thin as 10-15 microns. As a one component epoxy, it contains thermally conductive fillers with very small particle sizes imparting a low thermal resistance of 5-7 x 10-6 K•m2/W. It also offers a thermal conductivity of 9-10 BTU•in/ft2•hr•°F [1.30-1.44 W/(m·K)] and a volume resistivity exceeding 1014 ohm-cm. The epoxy EP3UF passes NASA low outgassing tests and can be used for bonding and underfills in microelectronics packaging/assembly applications.
Easy to Handle Epoxy
As a single component system, EP3UF is easy to handle with an “unlimited” working life at room temperature and fast cures at temperatures as low as 250°F. This high performance system delivers a tensile strength of 5,000-7,000 psi and a compressive strength of 18,000-20,000 psi. It bonds well to a variety of substrates such as metals, composites, ceramics, and many plastics. This dimensionally stable compound has low shrinkage upon curing.
EP3UF withstands many chemicals, including water, cleaning solvents, oils and fuels. This light yellow colored epoxy is serviceable over the temperature range of -60°F to +250°F [-51°C to +121°C]. It is available for use in 10 cc syringes, 30 cc syringes, ½ pint and pint containers and has a 6 month shelf life at room temperature in its original, unopened containers.
Master Bond Underfill Adhesives

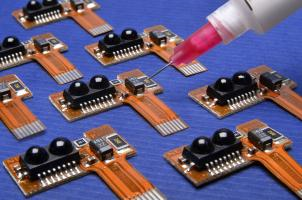

Well suited for underfill applications, Master Bond EP3UF is a single component compound that cures rapidly at elevated temperatures. It offers thermally conductivity, electrical insulation and dimensional stability.
