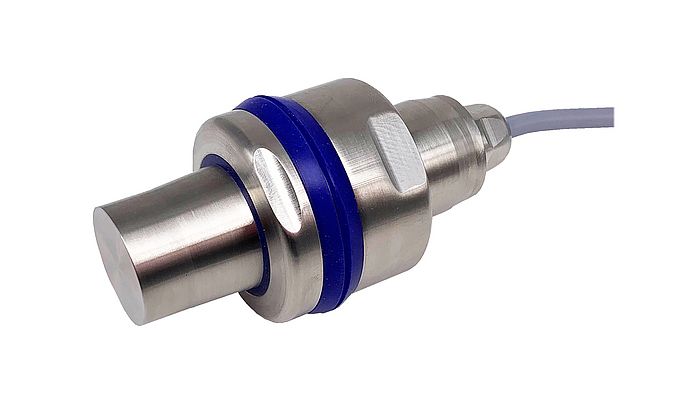

With the P53 series, PiL Sensoren offers robust ultrasonic sensors for applications with stringent hygienic requirements. The fully encapsulated stainless-steel housing (1.4404) features a gap-free design and a polished surface finish (< 0.8 µm), meeting the requirements of EHEDG and FDA. Thanks to protection class IP69 and ECOLAB certification, the sensors are resistant to acidic and alkaline cleaning agents and can be cleaned efficiently using CIP (Cleaning in Place) processes. The P53 sensors operate without contact and accurately detect solid, liquid, and pasty media.
Integrated temperature compensation
The fully encapsulated stainless-steel housing provides reliable protection against steam, dust, and moisture, making the series particularly suitable for use in harsh industrial environments. Available with housing diameters of Ø18 mm and Ø30 mm, the series covers measuring ranges from 150 to 1500 mm and is designed for ambient temperatures of up to 70 °C. Analog or switching outputs, along with integrated temperature compensation, make these sensors ideal for a wide range of applications, including filling and packaging systems, coagulators, and pharmaceutical production lines.
