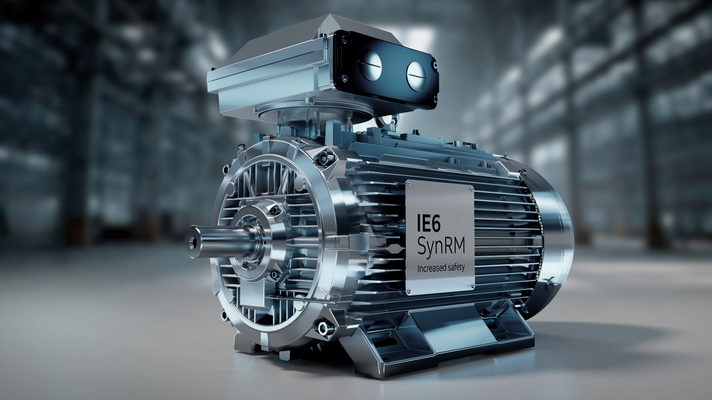

ABB offers an IE6 Hyper‑Efficiency motor certified to ATEX and IECEx requirements for use in hazardous areas. The new IE6 Increased safety motor, based on ABB’s magnet- and rare earth- free synchronous reluctance (SynRM) technology, offers up to 60 percent lower energy losses than the IE3 induction motors commonly used in Zones 1 and 2. This enables operators to realize a major boost in energy efficiency and avoided carbon emissions in industries where gas, vapor or dust might be present, such as chemicals, marine, oil & gas, pharmaceuticals and food & beverage.
Fast ROI
The IE6 SynRM Increased safety motor is certified for use with variable speed drives (VSDs) to offer accurate control and high efficiency throughout the whole speed range, even at partial loads. This makes it the ideal upgrade for standard IE3 induction motors in pumps, fans and compressors. Over a typical 20-year service life, the energy savings from switching just one motor up to IE6 would be €87,520, resulting in an eight-month payback period. The saving calculation is based on a 110 kW motor operating 8,760 hours/year at 75 percent average load, with an assumed energy cost of €0.20/kWh. Also emissions of 157,540 kg CO₂ are avoided —equivalent to 37 gasoline powered passenger cars driven for a year.
“With the world’s first IE6 Hyper‑Efficiency SynRM motor for hazardous areas, we now have the ideal solution for customers who must drive down their operating expenses while meeting stringent sustainability targets,” said Stefan Floeck, President IEC LV Motors, ABB.
The new IE6 SynRM Increased safety motor covers ratings from 110 kW, with IE5 versions available for up to 90 kW. As well as increased reliability and reduced maintenance, SynRM technology enables a more cost-effective installation. In Zone 1, cooler running can allow the use of an Increased safety SynRM motor where a Flameproof motor with a special enclosure would be the traditional choice. Furthermore, in Zone 2, the improved loadability of SynRM motors enables more power from the same size as an equivalent induction motor. This could enable a smaller, lower-cost motor to fulfil the same duty.
ABB’s IE6 and IE5 SynRM technology is part of the industry’s broadest portfolio of IEC LV motors for hazardous areas, with induction alternatives up to IE4 efficiency level. Whatever the technology, these motors combine robust construction, high energy efficiency, and reliable operation to deliver trusted performance and certified safety in the most demanding environments.
