Devices of the JUMO hydroTRANS series are dependable humidity and temperature transmitters with an optional CO2 module. The device series is available with various interfaces. Moreover, it is characterized by easy installation, robustness, and reliable sensor technology.

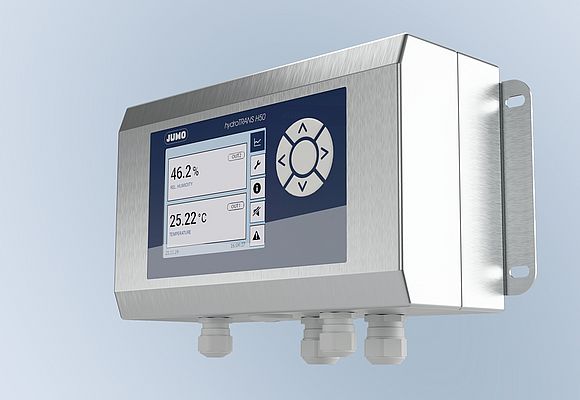

The new hydroTRANS H50 is a solution even in areas with high levels of moisture or chemical contamination thanks to highly accurate as well as stable temperature and humidity measurements. Its broad application area of -80 to +180 °C and its ability to measure pressures of up to 300 bar not only allows it to handle a wide range of measurement tasks, but also reduces equipment costs due to an integrated data logger.
Measurement for efficient processes
The transmitter is able to cover a wide applicational range that need a high degree of process reliability as the following examples demonstrate:
Dry processes for grain can be monitored very closely and also accelerated, thanks to the JUMO hydroTRANS H50 robustness and precision despite the extremely high temperatures.
PEM fuel cells are another application area. PEM stands for “Proton Exchange Membrane” or “Polymer Electrolyte Membrane”. 2 types of PEM fuel cells are being developed: low-temperature cells (up to about 90 °C) and high-temperature cells (up to about 180 °C). In the fuel cell, the JUMO hydroTRANS H50 is used to measure the humidity in the supply lines for hydrogen and oxygen. This ensures that the membrane is always properly moistened and, as a result, the operating life and effectiveness of the fuel cell are maximized.
