Data logger

for up to 4 thermocouple sensors

  • Data logger
    Data logger

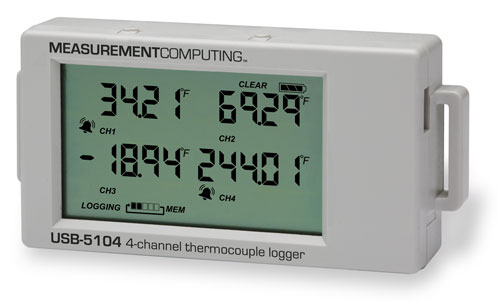

Measurement Computing Corporation's high-accuracy, 4-channel thermocouple data logger USB-5104 records temperature in indoor environments. It supports up to four J, K, T, E, R, S, B, or N type thermocouple sensors (sold separately) and stores 1.9 million measurements, recording ambient temperature with internal temperature thermistor

The device supports software-selectable burst logging, enabling the logger to record data at different intervals based on user-specified conditions. The built-in LCD screen displays readings, logging status, battery use, and memory consumption between readouts. The software-selectable logger alarm indicates high or low readings. It features logger control buttons for manual control of logging, display options, and event generations. The data logger is powered by two AAA batteries and includes mini-USB cable and built-in magnets and accessory kit for logger mounting.

The  easy-to-use USB-5100 Series Data Logger software is available as a free download to configure, launch and perform data read out of data loggers. Supported operating systems: Windows 8/7/Vista/XP, 32-bit or 64-bit (required Java Runtime Environment available for installation with software), and Mac OS X 10.6.x or later, 32-bit or 64-bit.
