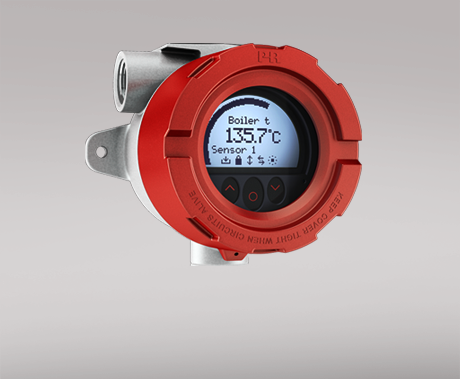

Field Mounted Temperature Transmitter 7501
Field Mounted Temperature Transmitter 7501

The new field mounted transmitter developed by PR electronics is the first new product in an extensive renovation project of the company's temperature portfolio, in order to offer brand-new state-of-the-art temperature measurement devices.

Unique technology

Using unique technology, the user can easily configure the transmitter from the front of the housing in any environment by simply touching the optical buttons - even when wearing gloves. Chief Technology Officer, Stig Lindemann says:

"The optical buttons combined with the 10 mm explosion proof window is a patent-pending technology. It enables the user to access the LOI in all operating environments without opening the housing. The optical buttons are immune to interference of ambient light sources and false triggering caused by shadows and reflections and it dynamically adapts to accumulation of dust and moisture."

The user can also perform advanced HART programming from the front, and as a result, significantly reduce the need for handheld communicators (HHC). The easy-to-read 60 mm high definition display provides a clear indication of the process magnitude, supported by a radial bar graph in real time.

The transmitter delivers HART 7 functionality with HART 5 compatibility and can be configured to measure 2, 3 and 4 wire RTDs, 13 different thermocouple types as well as bipolar mV and resistance signals, and it provides an analog output.

Easy configuration and operation

The transmitter has three mounting options: on the temperature sensor, on a pipe, or on a bulkhead. Configuration is easy and logical with scrolling help texts and three optical buttons: up arrow, down arrow and OK. Thanks to the user-friendly PR Menu Guide, it is possible to configure the device in less than 1 minute.

Chief Sales Officer, Simon Bisbo says:

"We have high expectations for the 7501. The product fills a gap in the market for high quality, intuitive temperature signal conditioning solutions in the field. It offers high accuracy data monitoring and diagnostics as well as intuitive programming in the field at a low cost compared to competitive solutions."
