Rugged ECT DIN Signal Isolator/Converter

  Enquiry / contact me

Thin 15mm housing reduces installation footprint and costs

Automation & Communication, Measurement & Instrumentation

Rugged ECT DIN Signal Isolator/Converter
Rugged ECT DIN Signal Isolator/Converter

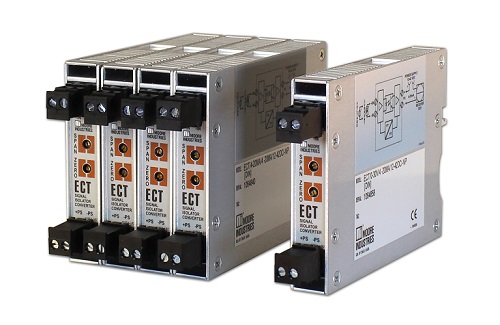

The UL approved Moore Industries ECT-DIN 2-Wire Isolator is now available in a narrow 15mm aluminum housing. The thinner ECT-DIN 2-Wire Isolator with 15mm width retains the same General and Hazardous area approvals as the rest of the ECT family of isolators. It also has the same RFI/EMI protection and -40°C to 85°C operating temperature range. The ECT-DIN 2-Wire Isolator can be installed in hazardous locations and does not require installation in climate-controlled environments, making it perfect for more extreme locations.

For demanding ambient conditions

The rugged narrow 15mm ECT DIN 2-Wire isolator and converter with 4-20mA, 1-5V and 0-10V inputs and 4-20mA output, allows more isolators to fit in cabinets and field enclosures where installation space is a premium. This is ideal for utilizing existing field mounted cabinets. The solid metal housing stands up to the continuous, daily rigors of process control and factory automation applications. An optional externally-mounted flange provides a secure mount, which ensures secure installation in high vibration environments. The ECT is UL approved Class I, Division 2, Groups A, B, C & D T4. The rugged and reliable ECT family of signal isolators and converters provides versatile choices to match the type of AC or DC power available at each location. ECT-DIN 2-wire Output-Loop powered models, ECT 2-wire Input-Loop powered models, or 4-wire (Line/Mains) Powered Isolators/Converters and Splitters are also available. The complete ECT family delivers reliable signal isolation and conversion solutions for the most demanding ambient and noisy installation conditions.


Posted on June 25, 2020 - (710 views)
Moore Industries
16650 Schoenborn Street
91343 North Hills - USA
+1-818-8947111
+1-818-8912816
View full company profile
