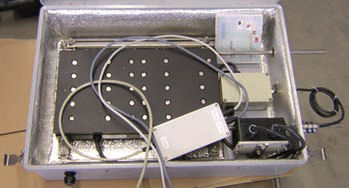

An explosion-proof smart fluid heater provides fast and accurate temperature control in a closed-loop system at Chemring Marine Ltd, where it boosts the temperature of a flushing agent used in the manufacture of marine distress flares.

Processing Machinery, Maintenance, Explosion Protection & Safety

Ex-Proof Fluid Heater Helps Reduce Costs
Ex-Proof Fluid Heater Helps Reduce Costs
Ex-Proof Fluid Heater Helps Reduce Costs
Ex-Proof Fluid Heater Helps Reduce Costs

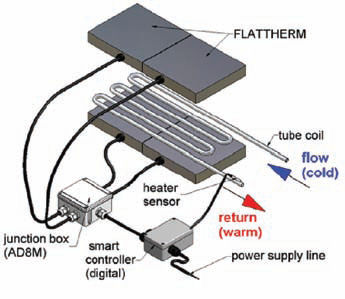

Chemring Marine Ltd is a specialist manufacturer of marine distress signals, producing the Comet brand of SOLAS-approved smoke markers and handheld rocket flares, which are used by the world’s navies, lifeboat and rescue services, merchant fleets and airlines, as well as fishing vessels and leisure craft. Chemring Marine has installed an explosion-proof smart fluid heater to help reduce process costs at its production facility in Bremerhaven, Germany. The unit works in series with the company’s existing fluid heater system, and is used to boost the temperature of a flushing agent used in the manufacture of marine distress flares, immediately prior to use. The preexisting single-stage heating system demanded that a relatively large volume of flushing agent was maintained permanently at exactly the right temperature, resulting in very high operational costs. Part of Chemring Marine’s rocket flare manufacturing process at Bremerhaven, Germany, involves forcing propellant into the plastic body of the flare; at the end of each production batch, the tray beneath the filling area is flushed clear of any stray propellant by an operator, in preparation for the next batch. In order to ensure that the propellant is thoroughly dissolved and does not form a safety hazard, the acidic flushing agent needs to be delivered to the point of use at exactly +60°C. Since the entire process takes place within an Ex (ATEX) classified zone, Chemring Marine developed an explosion-proof method of heating the flushing agent, involving a special double-walled heat exchanger which transfers heat from a hot water source system to the bulk supply of flushing agent. However, maintaining the entire supply of flushing agent at this temperature proved expensive, so Chemring Marine sought Intertec’s help in investigating whether the company could supply a more cost-effective solution, based on its Flattherm heater blocks. These small, electrically-powered modular conduction heaters provide a very flexible means of configuring explosion-proof fluid heater systems – multiple units can be operated in a master-slave arrangement to provide the required power output level, and they can be sandwiched around a tube of any appropriate material to create a highly efficient heat exchanger. An intrinsically safe temperature sensor on the outlet pipe provides feedback to a digital PID controller, facilitating fast and accurate temperature control. These types of heater system are ideal for applications where varying levels of heat energy need to be transferred accurately and quickly into the fluid, in order to compensate for changes in flow rates or inlet temperatures, or to accommodate different demanded outlet temperatures. In this case the fluid heater system is based on a master-slave configuration comprising a single 500W and a single 400W Flattherm heater block, using stainless steel tubing to accommodate the aggressive flushing agent. The outlet sensor is connected to the company’s TC D digital temperature controller, which is an ATEX-approved unit with fully encapsulated solid state circuitry; it uses zero-voltage switching techniques and a Triac power switching element to minimise radio frequency interference and power losses, and provides fully proportional control. Designed for use in hazardous and potentially explosive atmospheres, the TC D controller incorporates a number of high reliability safety features, including local monitoring of the heater block’s surface temperature, with automatic limiting and fault shutdown. The entire heater system is housed in a standard Intertec enclosure, which is certified for use in Zone 1 environments. According to Uwe Eggers, the Safety Officer in charge of waste management at Chemring Marine’s Bremerhaven facility, “Intertec’s explosion-proof fluid heater has proved to be an exceptionally cost-effective solution to our needs. All our work here is carried out in compliance with international safety standards, including the German Explosives Act, which in respect of pyrotechnic products and explosives is one of the most rigorous in the world. Most commerciallyavailable explosion-proof heating systems involve wrap-around heating cables which require costly and time-consuming inspection and certification processes, so being able to install what is effectively a completely self-contained custom ATEX-approved heater was a huge advantage. What’s more, we are now able to heat the flushing agent to exactly the right temperature on an as-demand basis, which is much more efficient and far less expensive to operate.”
